White Short Roller Ball Contact With Terminals

FOB Reference Price:Get Latest Price
$0.72 - $1.60 / Piece | 500 Piece/Pieces (Min. Order)
Usage:
Door Window
Lead Time:
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Sentek
Model Number:
BS-1032T
Product name:
White Short Roller Ball Contact With Terminals
certificate:
CE, UL, CUL
Color:
white or brown
cable:
18" #22AGW
Material:
ABS Plastic
Size:
3/4"dia.x13/16"L
Loop Type:
Closed
Reed Form:
N/O
Wire:
Standard 18" #22AWG leads
Installation:
Plunger flush type
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month White Short Roller Ball Contact With Terminals
Packaging & Delivery
Packaging Details
packed according to customers' request, or Standard packing;500PCS/ carton door magnetic contact
Port
Ningbo
Lead Time :
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 15 To be negotiated

White Short Roller Ball Contact With Terminals

Product Description

Specification:

Style:White Short Roller Ball Contact With TerminalsItem:BR-1032T
Magnet:Rare Earth MagnetColor:White, Brown
Wire Range Cable:#18~#24AWGLoop Type:Closed
Reed Form:N/OGap(Total Travel)[Inch(mm)]1/4(6)
Depature Gap[Inch(mm)] Maximum InitialContact Resistance(Ohm)0.150
MaximumContact Rating(W)10Maximum Switching Voltage(VDC/VAC)100
Maximum Switching Current(A)0.5CertificateCE, UL

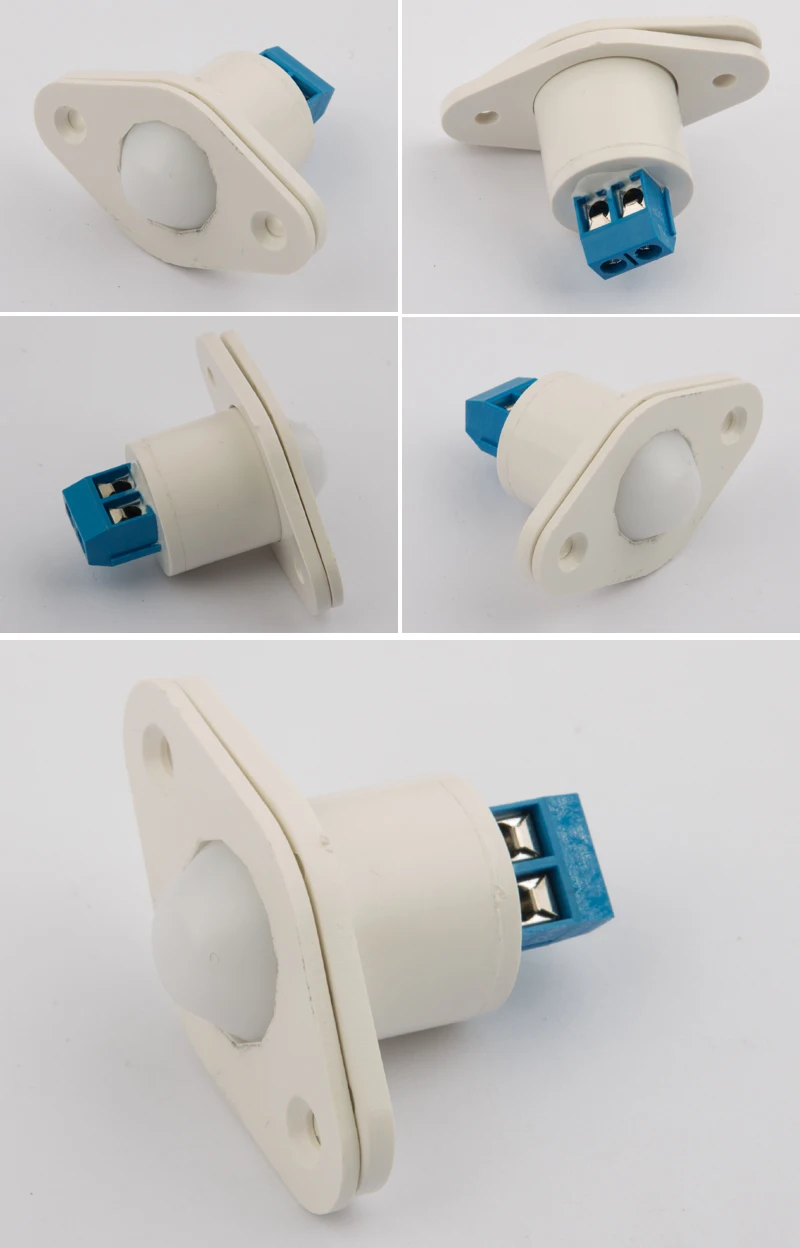

 White Short Roller Ball Contact With Terminals

BR-1032T-8

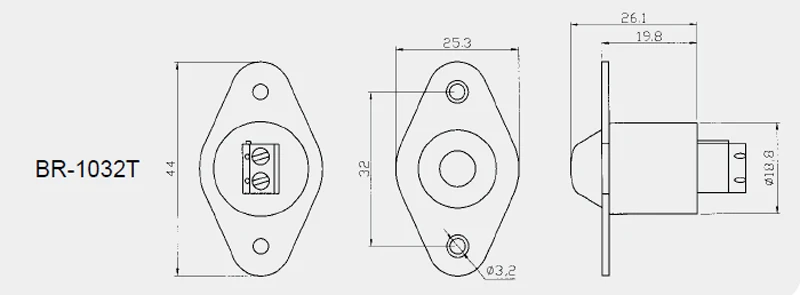

 Dimension (mm):

BR-1032T-9

 Product Features:

*Plunger flush type
*3/4" diameter
*Standard 18" #22AWG leads

*Special leads available

*Spacer and screws included

*Terminal block available

Order Information:

Part

Number

Loop

Type

Reed

Form

Gap

(total travel)[Inch (mm)]

Maximum Initial

Contact Resistance

(Ohm)

Maximum

Contact Rating

(W)

Maximum

Switching Voltage

(VDC/VAC)

Maximum

Switching Current

(A)

BR-1032

Closed

N/O

1/4 (6)

0.150

10

100

0.5

BR-1032T

Closed

N/O

1/4(6)

0.150

10

100

0.5

Note: 1. Total Travel:  .236 inch (6mm)   Pre Travel:  .065+/-.025 inch (1.65+/-0.60 mm)

            2. Wire range for terminal:  #18~#24AWG
